feat: [Community Pipeline] - FaithDiff Stable Diffusion XL Pipeline #11188

New issue

Have a question about this project? Sign up for a free GitHub account to open an issue and contact its maintainers and the community.

By clicking “Sign up for GitHub”, you agree to our terms of service and privacy statement. We’ll occasionally send you account related emails.

Already on GitHub? Sign in to your account

Merged
merged 2 commits into from
Apr 2, 2025

Conversation

elismasilva
Copy link
Contributor

@elismasilva elismasilva commented Apr 1, 2025

What does this PR do?

This PR implements a pipeline for (CVPR 2025) FaithDiff: Unleashing Diffusion Priors for Faithful Image Super-resolution
[Project Page]   [Paper]

I think this can complement #9740, with a step 1 where it is possible to restore low quality images, in addition to it also allowing a great upscale. For more details see the project links above.

Thanks to @JyChen9811 for his amazing work! Questions about the paper can be directed to him directly.

Example Usage

This example upscale and restores a low-quality image. The input image has a resolution of 512x512 and will be upscaled at a scale of 2x, to a final resolution of 1024x1024. It is possible to upscale to a larger scale, but it is recommended that the input image be at least 1024x1024 in these cases. To upscale this image by 4x, for example, it would be recommended to re-input the result into a new 2x processing, thus performing progressive scaling.

Local Test

import random
import numpy as np
import torch
from diffusers import AutoencoderKL
from pipeline_faithdiff_stable_diffusion_xl import FaithDiffStableDiffusionXLPipeline
from huggingface_hub import hf_hub_download
from diffusers.utils import load_image
from PIL import Image

device = "cuda"
dtype = torch.float16
MAX_SEED = np.iinfo(np.int32).max

# Download weights for additional unet layers
model_file = hf_hub_download(
    "jychen9811/FaithDiff",
    filename="FaithDiff.bin", local_dir="./proc_data/faithdiff", local_dir_use_symlinks=False
)

# Initialize the models and pipeline
vae = AutoencoderKL.from_pretrained("madebyollin/sdxl-vae-fp16-fix", torch_dtype=dtype)

model_id = "SG161222/RealVisXL_V4.0"
pipe = FaithDiffStableDiffusionXLPipeline.from_pretrained(
    model_id,
    torch_dtype=dtype,
    vae=vae,
    unet=None, #<- Do not load with original model.
    use_safetensors=True,
    variant="fp16",
).to(device)

# Here we need use pipeline internal unet model
pipe.unet = pipe.unet_model.from_pretrained(model_id, subfolder="unet", variant="fp16", use_safetensors=True)

# Load aditional layers to the model
pipe.unet.load_additional_layers(weight_path="proc_data/faithdiff/FaithDiff.bin", dtype=dtype)

# Enable vae tiling
pipe.set_encoder_tile_settings()
pipe.enable_vae_tiling()

# Optimization
pipe.enable_model_cpu_offload()

#input params
prompt = "The image features a woman in her 55s with blonde hair and a white shirt, smiling at the camera. She appears to be in a good mood and is wearing a white scarf around her neck. "
upscale = 2 # scale here
start_point = "lr" # or "noise"
latent_tiled_overlap = 0.5
latent_tiled_size = 1024

# Load image
lq_image = load_image("https://huggingface.co/datasets/DEVAIEXP/assets/resolve/main/woman.png")
original_height = lq_image.height
original_width = lq_image.width
print(f"Current resolution: H:{original_height} x W:{original_width}")

width = original_width * int(upscale)
height = original_height * int(upscale)
print(f"Final resolution: H:{height} x W:{width}")

# Restoration
image = lq_image.resize((width, height), Image.LANCZOS)
input_image, width_init, height_init, width_now, height_now = pipe.check_image_size(image)

generator = torch.Generator(device=device).manual_seed(random.randint(0, MAX_SEED))
gen_image = pipe(lr_img=input_image,
                 prompt = prompt,
                 num_inference_steps=20,
                 guidance_scale=5,
                 generator=generator,
                 start_point=start_point,
                 height = height_now,
                 width=width_now,
                 overlap=latent_tiled_overlap,
                 target_size=(latent_tiled_size, latent_tiled_size)
                ).images[0]

cropped_image = gen_image.crop((0, 0, width_init, height_init))
cropped_image.save("data/result.png")

Local testing after published

import random
import numpy as np
import torch
from diffusers import DiffusionPipeline, AutoencoderKL
from huggingface_hub import hf_hub_download
from diffusers.utils import load_image
from PIL import Image

device = "cuda"
dtype = torch.float16
MAX_SEED = np.iinfo(np.int32).max

# Download weights for additional unet layers
model_file = hf_hub_download(
    "jychen9811/FaithDiff",
    filename="FaithDiff.bin", local_dir="./proc_data/faithdiff", local_dir_use_symlinks=False
)

# Initialize the models and pipeline
vae = AutoencoderKL.from_pretrained("madebyollin/sdxl-vae-fp16-fix", torch_dtype=dtype)

model_id = "SG161222/RealVisXL_V4.0"
pipe = DiffusionPipeline.from_pretrained(
    model_id,
    torch_dtype=dtype,
    vae=vae,
    unet=None, #<- Do not load with original model.
    custom_pipeline="pipeline_faithdiff_stable_diffusion_xl",
    use_safetensors=True,
    variant="fp16",
).to(device)

# Here we need use pipeline internal unet model
pipe.unet = pipe.unet_model.from_pretrained(model_id, subfolder="unet", variant="fp16", use_safetensors=True)

# Load aditional layers to the model
pipe.unet.load_additional_layers(weight_path="proc_data/faithdiff/FaithDiff.bin", dtype=dtype)

# Enable vae tiling
pipe.set_encoder_tile_settings()
pipe.enable_vae_tiling()

# Optimization
pipe.enable_model_cpu_offload()

#input params
prompt = "The image features a woman in her 55s with blonde hair and a white shirt, smiling at the camera. She appears to be in a good mood and is wearing a white scarf around her neck. "
upscale = 2 # scale here
start_point = "lr" # or "noise"
latent_tiled_overlap = 0.5
latent_tiled_size = 1024

# Load image
lq_image = load_image("https://huggingface.co/datasets/DEVAIEXP/assets/resolve/main/woman.png")
original_height = lq_image.height
original_width = lq_image.width
print(f"Current resolution: H:{original_height} x W:{original_width}")

width = original_width * int(upscale)
height = original_height * int(upscale)
print(f"Final resolution: H:{height} x W:{width}")

# Restoration
image = lq_image.resize((width, height), Image.LANCZOS)
input_image, width_init, height_init, width_now, height_now = pipe.check_image_size(image)

generator = torch.Generator(device=device).manual_seed(random.randint(0, MAX_SEED))
gen_image = pipe(lr_img=input_image,
                 prompt = prompt,
                 num_inference_steps=20,
                 guidance_scale=5,
                 generator=generator,
                 start_point=start_point,
                 height = height_now,
                 width=width_now,
                 overlap=latent_tiled_overlap,
                 target_size=(latent_tiled_size, latent_tiled_size)
                ).images[0]

cropped_image = gen_image.crop((0, 0, width_init, height_init))
cropped_image.save("data/result.png")

Before submitting

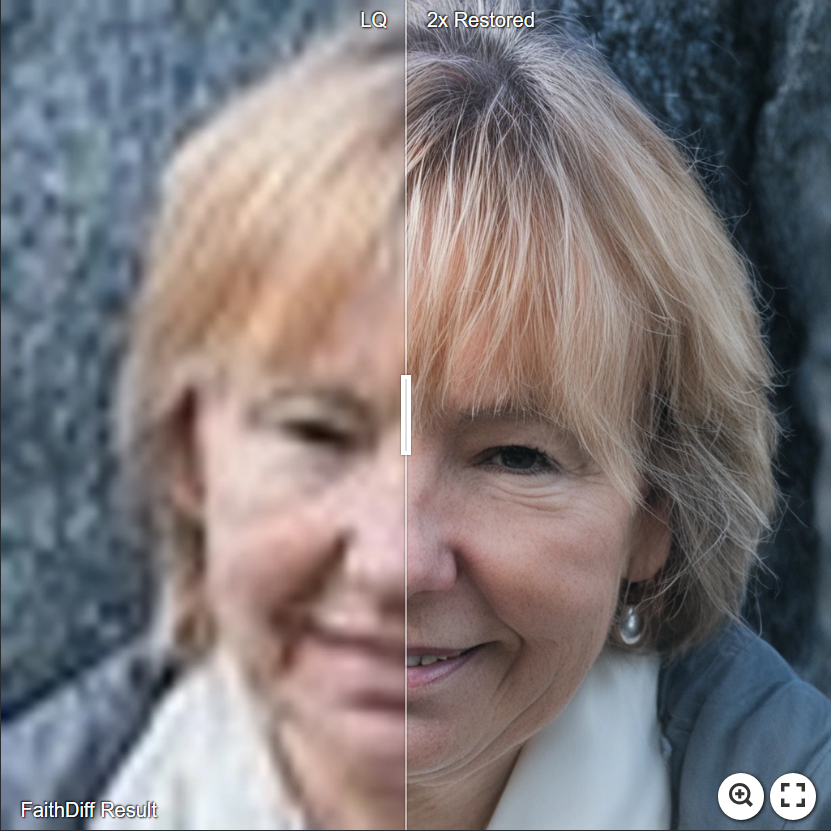

Result

Who can review?

@asomoza @sayakpaul @yiyixuxu
