Define Voltage, Current #51
Conversation
- Adds tests to verify shape + dimension way of defining sources
|
@ChrisRackauckas can you approve the workflow runs? |
|
@ChrisRackauckas can you approve the workflow runs one more time? Also, now this PR is ready. |
Codecov Report
@@ Coverage Diff @@
## main #51 +/- ##
==========================================
- Coverage 71.77% 68.51% -3.26%
==========================================
Files 23 23
Lines 1024 918 -106
==========================================
- Hits 735 629 -106
Misses 289 289
📣 Codecov can now indicate which changes are the most critical in Pull Requests. Learn more |
|
Can you please add the smooth signal definitions to |
| _square_wave(t, δ, f, A, st) = A*2atan(sin(2π*(t-st)*f)/δ)/π | ||
| _step(t, δ, h, a) = h*(atan((t-a)/δ)/π + 0.5) | ||
| _triangular_wave(t, δ, f, A, st) = A*(1-2acos((1 - δ)sin(2π*(t-st)*f))/π) | ||
| _xH(t, δ, tₒ) = (t-tₒ)*(1+((t-tₒ)/sqrt((t-tₒ)^2+δ^2)))/2 |
There was a problem hiding this comment.
Don't throw these away.
There was a problem hiding this comment.
I want to move them to Blocks. (But with a separate PR)
- Remove extra spaces in analog & thermal tests - Add spaces in rotational tests - Add broken test for ramp-voltage/current
|
I've updated the And 'have added the
|
|

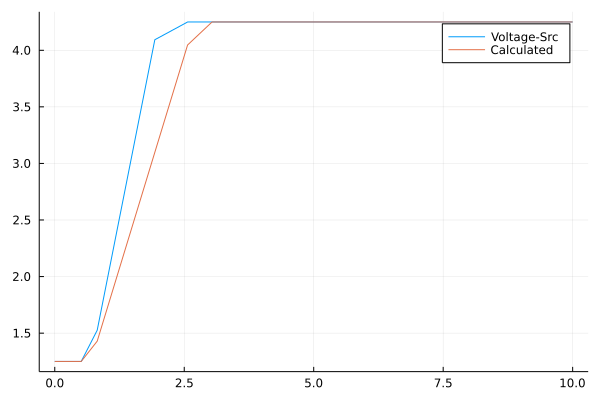

Fixed Ramp test in
|
|
Now that #59 is complete, once that is merged, I'll add tests with Triangular and Square sources + Voltage/Current |
- Attempt to increase overall codecoverage %
| end | ||
| end | ||
|
|
||
| # RL with different voltage sources |
There was a problem hiding this comment.
Why remove this test?
There was a problem hiding this comment.
We already test Voltage, Current + all different sources in
- "Current function generators"
- "Voltage function generators"
- RC with current sources
- RC with voltage sources (I added this one to see if that improces code-cov; but that didn't seem to affect)
That's why I removed RL tests with all sources (simple RL is still around)
Do we want to keep this around?
There was a problem hiding this comment.
No it's ok I think, as long as the RL test is there.
|
|
||
| A source in which the current through its terminals is a square function of time. | ||
| Acts as current signal. |
There was a problem hiding this comment.
Add a description about the convention of a positive current, i.e. which port has inflowing current if I is positive.
There was a problem hiding this comment.
Also here, it is an ideal current source with no internal resistance.
There was a problem hiding this comment.
Acts as an ideal current signal with no internal resistance modeled.
No further effects are modeled. Especially, the current flow will never end.
The inflowing current `I` is observed at the positive pin `p`
# States
- `i(t)`: [`A`]
The output current
# Connectors
- `p`
Positive pin
- `n`
Negative pin
- `I`
Input
Is this better?
|
|
||
| Acts as voltage signal. |
There was a problem hiding this comment.
Be more specific.
It is an ideal arbitrary waveform generator with no internal resistance, i.e. can source infinite currents.
There was a problem hiding this comment.
It is an ideal arbitrary Voltage waveform generator with no internal resistance, i.e. can source infinite currents.
# States
- `v(t)`: [`V`]
The voltage across this component
# Connectors
- `p`
Positive pin
- `n`
Negative pin
- `V`
Input
|
This removes a bunch of components from Electrical/Analog/Sources and hence is breaking. |
Voltage,Currentsignals in Electrical moduleThis finishes up the decoupling of Analog devices from shapes (from deprecated #18)
(While here, comments
Short
